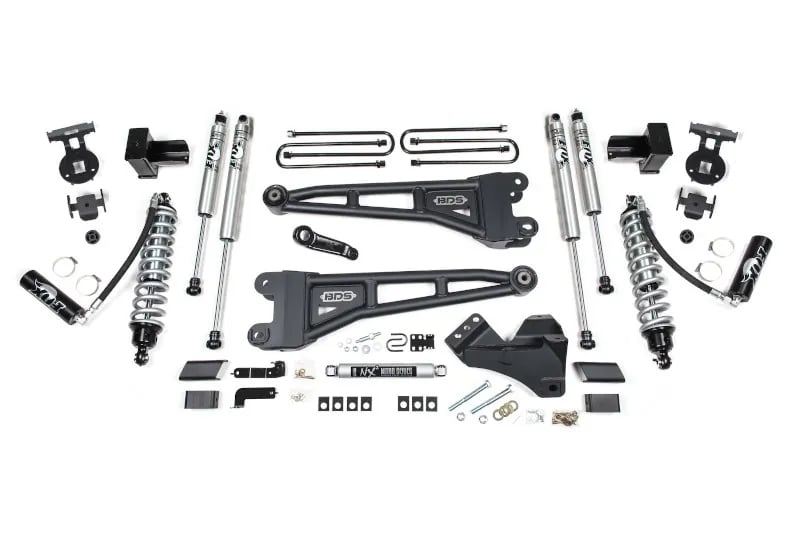

BDS 2020-2022 Ford F250/F350 Super Duty 4″ Coil-Over Radius Arm Suspension Lift

Highlights:

• Clear up to 37″ Tires
• Vastly Improved Off-Road Performance
• Heavy-Duty 4-Link Control Arms
• Featuring Fox 2.5 Coilovers
• DSC Adjuster Technology
• Backed by BDS’ Lifetime Warranty

High-End Coilover Conversion Suspension System

If you’re going for a well-rounded and comprehensive 4″ lift for your 6.7L diesel Super Duty, BDS Suspension’s Coilover Suspension Lift is one of the best options out there. This impressive lift kit offers customization options to meet your needs and each component is built so durably that the kit comes with a “No BS” Limited Lifetime Warranty. If you’re looking for a great lift that will allow you to throw on a set of rugged 37″ off-road tires and custom wheels, BDS’ 4″ Coilover Suspension Lift Kit is for you. The real star of the show here are Fox’s 2.5 Remote Coilovers, which provide your Super Duty the ultimate in off-road capability and ride handling. The coilovers mount using a pair of upper and lower brackets the key off the factory coil buckets and axle mount for easy installation. Along with high-end Fox coilovers, this awesome lift comes with a complete set of front and rear Fox 2.0 IFP performance gas shocks to round out your high-end, off-road ready suspension setup.

Heavy-Duty Radius Arm Suspension Lift

Make no mistake – the 2020-2022 Super Duty is a sight to behold straight from the factory. However, throw a 4″ lift at it and it becomes an entirely new beast. Not only will the BDS 4″ Radius Arm Lift Kit eliminate front rake and lift your ride to an appropriate height, but you’ll also be able to squeeze on larger wheels and tires making your Super Duty even more capable and aggressive looking. Featuring vastly improved radius arms constructed from 1-3/4″ OD -10GA DOM tubing with support gussets, this is one of the more dependable and well made lift kits on the market. This is the perfect lift kit to help you outfit your truck with a larger wheel/tire combination thanks to the radius arms’ high clearance design and inward formation. The arms feature factory style 3-1/4″ rubber bushings which help to minimize road vibrations and prolong bushing life. The assembly bolts right into the factory mounting points, positioning the front axle to correct caster angle. This particular kit comes equipped with standard FOX 2.5 Coilovers that help improve the overall stability and control of your ride, giving you plenty of confidence for every adventure. Better yet, each coilover comes equipped with FOX’s DSC Adjuster Technology that allows you to fine tune the compression and rebound of your shocks for the ultimate performance over any terrain.

Fitment: 2020-2022 F250 & F350 4WD Diesel Only

Wheel & Tire Fitment:

• 37 x 12.50 w/17 x 9 and 4.5″ – 5″ back spacing
• 37 x 12.50 w/18 x 9 and 4.5″ – 5″ back spacing
• 37 x 12.50 w/20 x 9 and 4.5″ – 5″ back spacing

Fitment Notes:

• Removal of the factory leaf spring block is required for installation.
• Net rear lift will vary depending on height of factory block, but will result in a level stance.
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit will need to be added to your order for proper fitment.
• 37 x 12.50 tires may require minor trimming.
• Fits 2-Leaf Main Pack Trucks Only
• If your truck is equipped with a factory rear sway bar, you’ll need to add the BDS Rear Anti-Sway Bar Link Kit to your order.
