Carli 2017-2023 Ford F250/F350 Super Duty 4.5/5.5 E-Venture Lift System

Carli Leveling E-Venture System Features:

• E-Venture Front & Rear Shocks
• Massive 2.5″ diameter shock bodies
• Premium Leveling Coils
• Overall 4.5″/5.5″ lift
• Adjustable Track bar
• Extended Brake Lines
• Great for on and off-road
• Enhanced Ride and Performance Quality
• Limited Lifetime Warranty

Improve Off-Road Capabilities With The E-venture Leveling System

If you want to give your 2017-2023 Ford Super Duty a major upgrade in both performance and appeal, check out the Carli 4.5″/5.5″ E-Venture Lift System! This premium aftermarket suspension lift kit is the upgraded version of Carli’s Pintop System, so you can expect more control and improved bottom-out resistance without compromise. This kit includes everything you’ll need to acheive a more commanding view of the road, improved off-road performance, and a boost in overall exterior style. Each package comes equipped with Carli’s Premium 4.5″/5.5″ Leveling Front Coils that prop up your truck’s front-end, giving you improved ground clearance over uneven terrain while helping to accommodate for larger tire/wheel combinations. You’ll also receive a full set of front and rear Carli E-Venture shocks with remote reservoirs which provide impressive damping characteristics while delivering improved handling and stability when you’re behind the wheel. The reservoirs promote faster heat dissipation to help keep you moving forward even when your applications become extreme. This kit also helps out during any towing/hauling applications as it works to keep you in control even when your ride is under a heavy load.

Carli E-Venture System

This premium E-Venture system stays two steps ahead of the driver thanks to data input provided by an engine mounted sensor and factory sensors via the OBDII port. The in-cab computer of this system processes information through Carli’s proprietary algorithm, allowing the shocks to react to the terrain beneath you 250 times per second. This results in the best ride quality for an on or off-road applications you have in mind. These shocks even come equipped with multiple performance modes, allowing you to soften your ride for highway excursions, or stiffen up the shocks for some serious trail riding. There’s even a “Pro” mode which takes it a step further for those who like to get nerdy. This mode allows users to adjust the Pitch, Roll, Brake, Throttle, and Steering Response to dial in the exact performance you need. A hauling feature even allows for various adjustments to keep you in control when your truck is loaded down. What’s more, each shock comes equipped with an external remote reservoir which allows for a larger volume of suspension fluid, resulting in fast heat dissipation even when you’re out pushing things to the limit.

Improve Your Trucks Towing Adventures

Carli manufactured their 4.5″/5.5″ E-Venture Suspension Lift System using only premium materials and the latest design techniques to ensure a perfect fit and function on your 2017-2023 Ford F-250/F-350. Each component of this kit was thoroughly tested to verify consistent and reliable performance of your suspension each time you set off for adventure. Each shock features a massive 2.5″ diameter body, and each spring is custom Carli tuned to your specific application to help give you more peace of mind on every adventure. When it comes to installation, this kit mounts directly to your truck using the included hardware and instructions provided by Carli, and requires zero permanent modifications made to your truck. Best of all, Carli Suspension backs this kit with a Limited Lifetime Warranty to help keep your investment protected.

Vehicle Fitment:

• 2017-2019 Ford F-250/F-350 4×4 Diesel – 4.5″ Lift
• 2020-2023 Ford F-250/F-350 4×4 Diesel – 5.5″ Lift

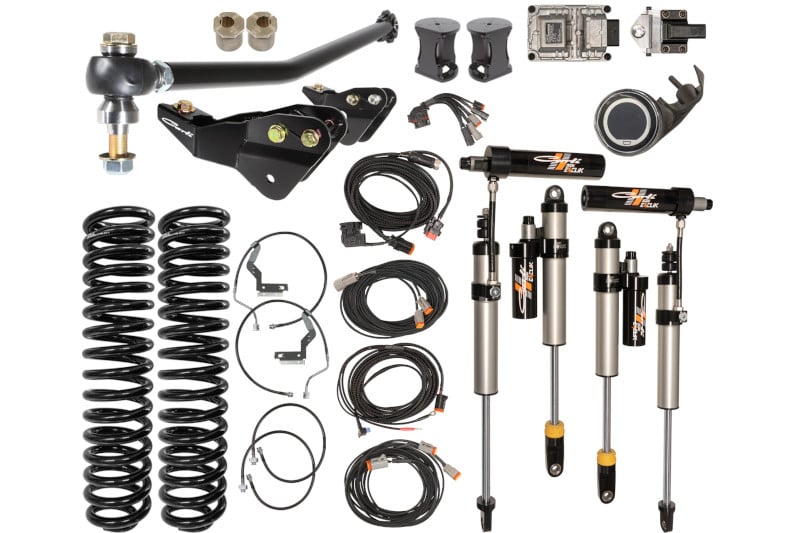

Base Kit Includes: Front Leveling Coils, Carli/SDI Custom Tuned 2.5″ Shocks, Harnesses, ECU, Touch Screen & IMU, Front Brake Lines; 2° Caster Shims, High Clearance Bump Stop Drops (Front), Track Bar, Reservoir Mounts

Vehicle Specs:

• Front Travel:10.25″
• Rear Travel:13″
• Shock Diameter:2.5″
• Tire Fitment: 37″ x 13.5″

Required Components: This requires the Carli’s Sway Bar End Link Kit, and Carli’s long bed extension harness . These components are sold separately.
