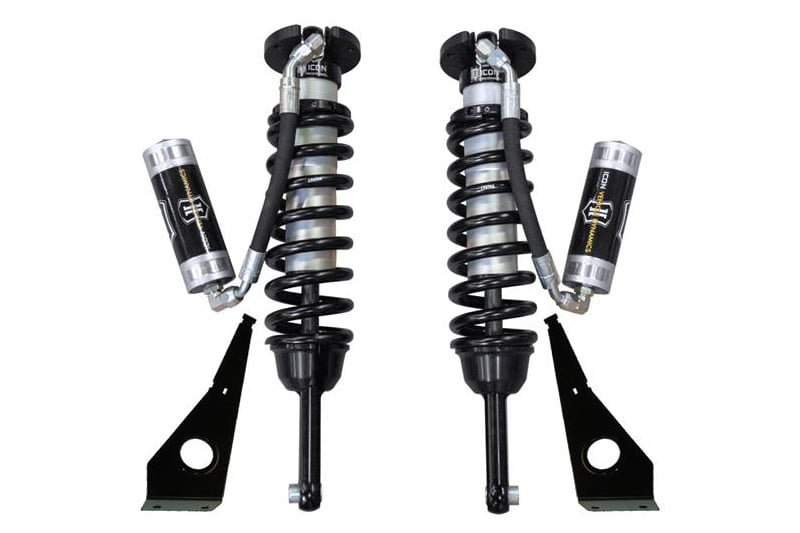

Tacoma ICON 2.5 VS RR Front Coilover Kit Features:
- Height-adjustable coilovers offer 0-3.5″ or 0-2.75″ of lift adjustment
- Vehicle specific tuned for superior shock damping and control
- Kit Includes Sway bar relocation brackets
- Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
- CAD-plated threaded body
- Billet aluminum upper mount
- 5/8″ PTFE-lined spherical bearing
- Completely re-buildable
- Hose Length Optimized for Increased Fluid Transfer
- External Reservoirs Ensures Maximum Cooling
- ICON engineered coil springs
Improved Off-Road Performance for Tacomas
Elevate your 2005-2023 Toyota Tacoma’s performance with the ICON Vehicle Dynamics 2.5 VS RR Front Coilover Kit. Designed for the discerning off-road enthusiast, this kit offers an incredible upgrade to your Tacoma’s front end. These adjustable coilovers provide a lift height adjustability range of 0-3.5 inches on 2005-2015 models or 0-2.75 inches on 2016-2023 models, giving you the freedom to equip larger, more aggressive wheel and tire combinations for superior off-road capabilities. The vehicle-specific tuning ensures superior shock damping and control, no matter the terrain. The kit includes sway bar relocation brackets and reservoir mounting brackets, optimizing tire clearance and enhancing your off-road experience. Crafted with precision, the CAD-plated threaded body, billet aluminum upper mount, and 5/8″ PTFE-lined spherical bearing guarantee long-lasting durability and performance.
High-Quality Construction & Design
These coilovers are completely re-buildable, ensuring they stand the test of time. The hose length is optimized for increased fluid transfer, and external reservoirs play a vital role in maintaining maximum cooling efficiency. They greatly increase shock oil volume and heat dissipation surface area, preventing overheating and cavitation, which can lead to damper fade during intense use. When paired with ICON’s 2.0 or 2.5 Aluminum Series rear shock absorbers, your Tacoma’s vehicle control will be perfectly balanced front to rear, resulting in the best overall driving experience. Whether you’re conquering challenging off-road trails or cruising city streets, these coilovers will take your Tacoma’s performance to the next level.
Vehicle Fitment: 2005-2023 Toyota Tacoma
Wheel and Tire Fitment:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 20×9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Application Note: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25″ over stock
